MJD50G
Manufacturer:
On Semiconductor
Mfr.Part #:
MJD50G
Datasheet:
Description:

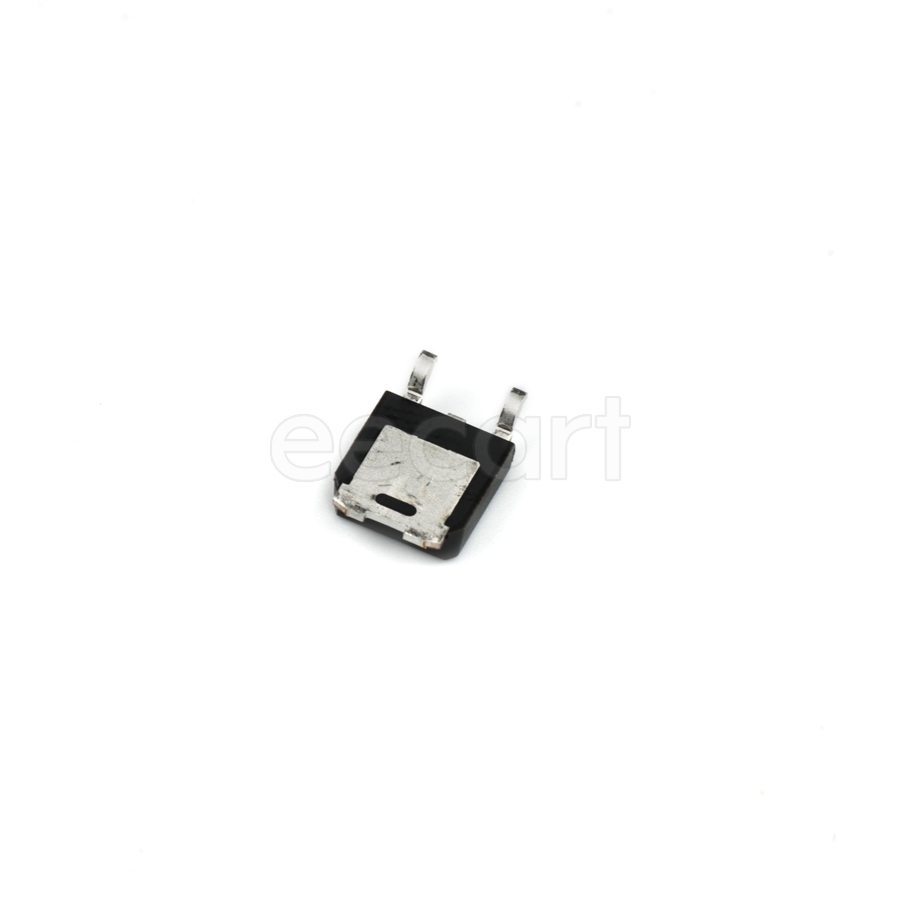

BJTs DPAK SMD/SMT NPN 1.56 W Collector Base Voltage (VCBO):500 V Collector Emitter Voltage (VCEO):400 V Emitter Base Voltage (VEBO):5 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 400 V |
| Length | 6.73 mm |
| Width | 6.22 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 3 |
| Height | 2.38 mm |
| Packaging | Tube |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | NPN |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Frequency | 10 MHz |
| Number of Elements | 1 |
| Current Rating | 1 A |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Max Power Dissipation | 1.56 W |
| Power Dissipation | 1.56 W |
| Max Collector Current | 1 A |
| Collector Emitter Breakdown Voltage | 400 V |
| Transition Frequency | 10 MHz |
| Element Configuration | Single |
| Max Frequency | 2 MHz |
| Collector Emitter Voltage (VCEO) | 400 V |
| Gain Bandwidth Product | 10 MHz |
| Collector Base Voltage (VCBO) | 500 V |
| Collector Emitter Saturation Voltage | 1 V |
| Emitter Base Voltage (VEBO) | 5 V |
| hFE Min | 30 |
| Schedule B | 8541290080 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 months ago) |
| Max Cutoff Collector Current | 200 µA |
| Transistor Type | NPN |
Stock: 871
Distributors
pcbx
pcbxUnit Price$0.84467
Ext.Price$0.84467
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.84467 | $0.84467 |
| 10 | $0.37104 | $3.71040 |
| 25 | $0.34492 | $8.62300 |
| 50 | $0.32064 | $16.03200 |
| 100 | $0.29807 | $29.80700 |
| 300 | $0.27709 | $83.12700 |
| 500 | $0.25759 | $128.79500 |
| 1000 | $0.23946 | $239.46000 |
| 3000 | $0.22260 | $667.80000 |
| 5000 | $0.20693 | $1034.65000 |
| 10000 | $0.19236 | $1923.60000 |
